UNICON has the experience and resources to effectively manage customer demands for turbine bypass and steam conditioning valves

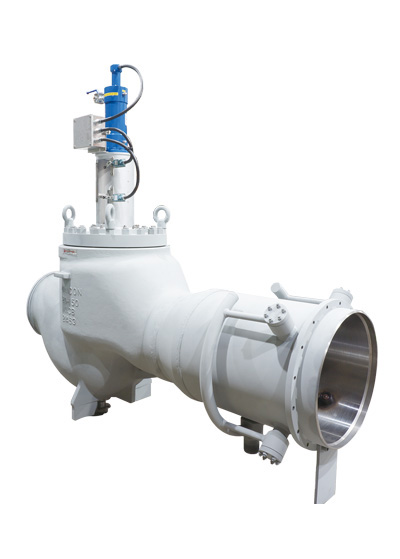

V400 Series
Pressure Reducing Desuperheating System (PRDS)

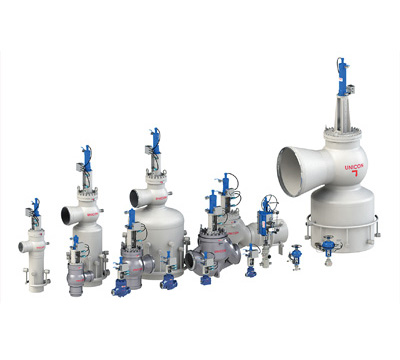

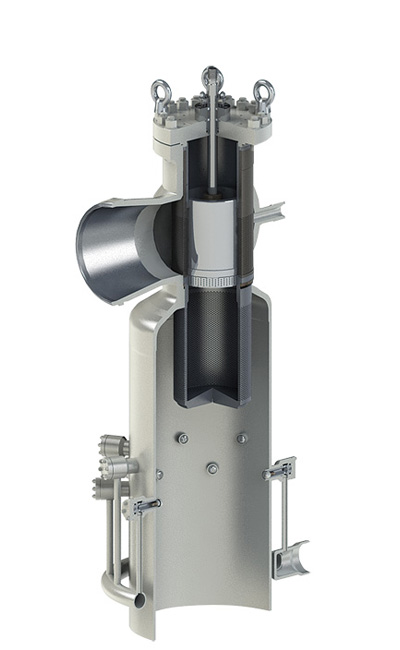

Key Features & Benefits | Standard Valve Specification | Design Flexibility | 3D Modeling Option Available
Key Features & Benefits
Basic Design Standard : ASME B16.34
  • Forged or casting valve body with uniform thickness to withstand thermal cycling.
  • Pressurized pilot plug design requires smaller actuating forces, and has tight shut-off class V or MSS SP-61.
  • Pressure seal bonnet, Bolted bonnet.
  • Special packing box allows packing replacement without bonnet disassembling.
  • Optimized pressure reduction stages and spray nozzle arrangements for the customer designed operating conditions to reduce vibration and noise.
  • Hydraulic, pneumatic, electrical actuators available.
  • High rangeability.
  • Various type of steam conditioning valve.
