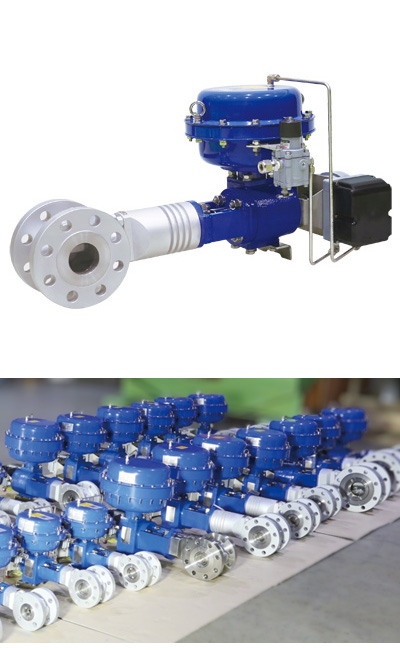

V700 Series
Eccentric Rotary Plug Control Valves
Key Features & Benefits
Basic Design Standard : ASME B16.34
Flanged Body Design
- The flanged body design fully meets ASME Class 150, 300, and 600 standards, reducing piping alignment and installation time.
- The one-piece flanged body is designed to reduce production costs.

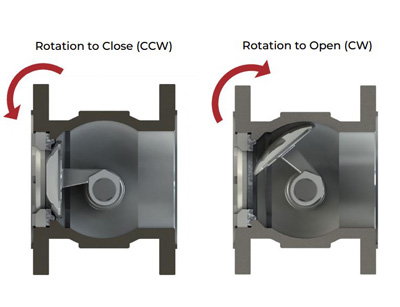

Eccentric Rotating Construction
- The shape of the eccentric rotary control valve’s disc provides benefits such as tight shut-off, high flow characteristics, and low unidirectional dynamic force.
- The disc of the eccentric rotary control valve contacts the seat only at the moment of seating due to the eccentric rotating design.
High Capacity Flow Design
- This unique disc design provides high flow characteristics.
- The full port’s Cv is normally 2-3 times greater than that of conventional globe valves.
- The high flow capacity combined with controllability at small openings provides excellent rangeability.
Available for High Temperatures
- Metal seating and hardened trim parts allow use in high-temperature and abrasive services.
High Temperature and Corrosion Capabilities
- Uses metal seals, and top and bottom bearings for high temperature and corrosion resistance.
