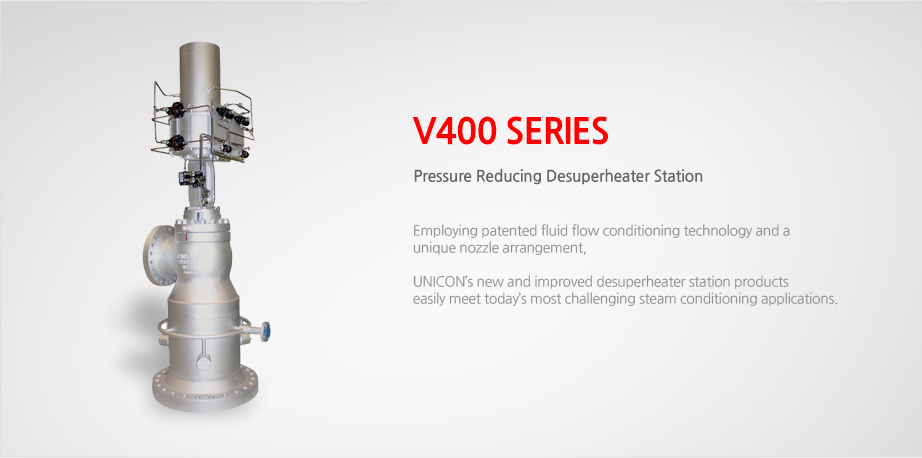

Home> Products Information > V400 SERIES

Product Overview

Introduction of our recent innovations

Standard Body Specification : Straight way & Angle body Cage Guided style
standard specification
Size 3" to 24"(DN80 … DN600)
Rating ANSI 150Lb to 2500Lb
JIS 10K to 63K
PN10 to PN450
Leakage ANSI FCI 70-2
Standard : ClassⅣ
Option : ClassⅤ
Cv Range 70 to 4,560
Press. Range up to 6,170 psi(g)
up to 434kgf/cm2
Temp. Range up to +1,050℉
up to +565℃
Materials Carbon steel(WCB,WCC),
Stainless steel(CF8,CF8M,CF3,CF3M)
Chrome-moly(WC6,WC9,C12A)
other alloys
End Connections
 RF/FF/RTJ Flanged,
Butt weld
Actuators Spring-diaphragm,
Cylinder, Motor,
Electro-Hydraulic
Applications
 Auxiliary Steam
Turbine Bypass(HP/LP)

Performance
High lntegrity design.
Streamlined flow passages to optimize capacity.
Excellent flow control rangeability.
High levels of energy conversion capability.
Design Flexibility
Modular construction design available with a range of different end connections styles.
Wide range of supplementary noise control options.
Multiple trim sizes available.

Advantages
Close control of pressure and temperature
Flexible plant systematization will save energy.
Good conditioned steam reduces cost in control system.
Piping arrangement simplified
Reduces components and eventually overall cost.
Shortens pipeline enabling easy piping arrangement.
Eliminates auxiliary steam line saving energy.
Easy maintenance
Fewer components reduce maintenance cost.
Almost wear-free valve seat/plug extend maintenance interval.
Environment improved
Noise generated may be attenuated to offer quiet environment.
Valve vibration is eliminated to assure safe operation.
