Home> Products Information > A100&A200 SERIES

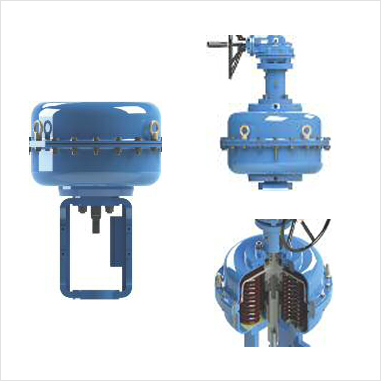

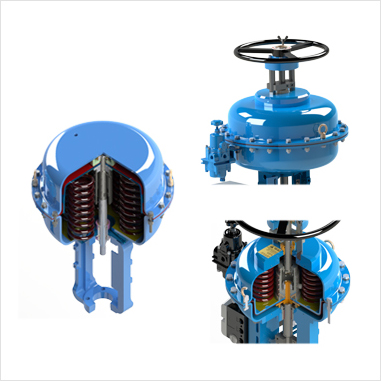

Product Overview

Introduction our recent innovations

Standard Specification : Linear Motion Style(A100)
standard specification
Size 250, 290, 370, 370L 480, 480H, 550, 550L (mm Diameter)
Air Supply 2.8 ~ 3.6 kgf/cm2
Effective Area(cm2) 270 to 1,520
Travel Range(mm) 10 to 120
Temp. Range -20℉ to +180℉, -30℃ to +80℃
Option : -40℉ to +248℉, -40℃ to +120℃
Materials Case : Carbon steel
Stem : Stainless steel
Diaphragm : EPDM + Nylon
Spring : Oil Tempered Spring Steel
Seal : EPDM / Silicone
Air Connections NPT(BSPP), PT : 1/4”, 1/2”
Option
 Top Handle,
Side Handle,
Top Side Handle
Applications Globe Valves

Standard Trim Specification :Rotary Quarter Turn Style(A200)
others specification
Size 250, 290, 370 480, 550(mm Diameter)
Air Supply 2.8 ~ 3.6 kgf/cm2
Effective Area(cm2) 270 to 1520
Travel Range(mm) 60 to 90 Degree turn
Temp. Range -20℉ to +180℉, -30℃ to +80℃
Option : -40℉ to +248℉, -40℃ to +120℃
Materials Case : Carbon steel
Stem : Stainless steel
Diaphragm : EPDM + Nylon
Spring : Oil Tempered Spring Steel
Seal : EPDM / Silicone
Housing : Carbon Steel
Air Connections NPT(BSPP), PT : 1/4”, 1/2”
Option Top Handle,
Top Side Handle
Applications Rotary Quarter Turn Valves,
Ball Valve,
Butterfly Valve
The stroking times for the multi-spring A100/A200 Series diaphragm actuator depend on the application.
The factors which influence this characteristic are the stroke, air supply pressure, size of pipework connection,
spring rate, operation action (air to open, air to close) and type of the possible associated positioner.
Actuator stroking time of less than one second can be obtained by using boosters.
Economical design.
Simply top and top side mounted hand-wheels.
Height strength actuators case with rugged design.
Low volume between diaphragm and actuator case.
High stability.
Low hysteresis.
Compact design with reduced height.
